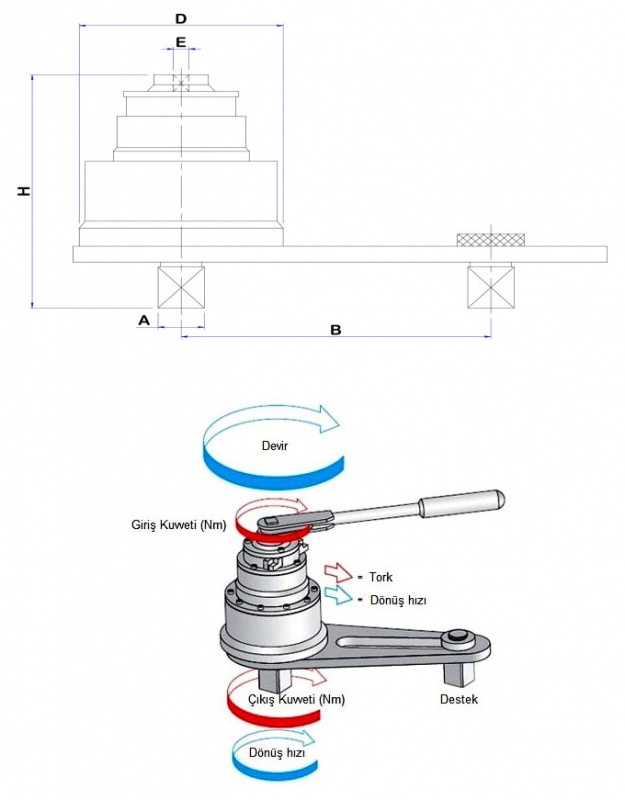

|Reaction arm length||(B)||mm||75-164||75-164||75-164||105-260||115-310||150-350||164-480||164-480|

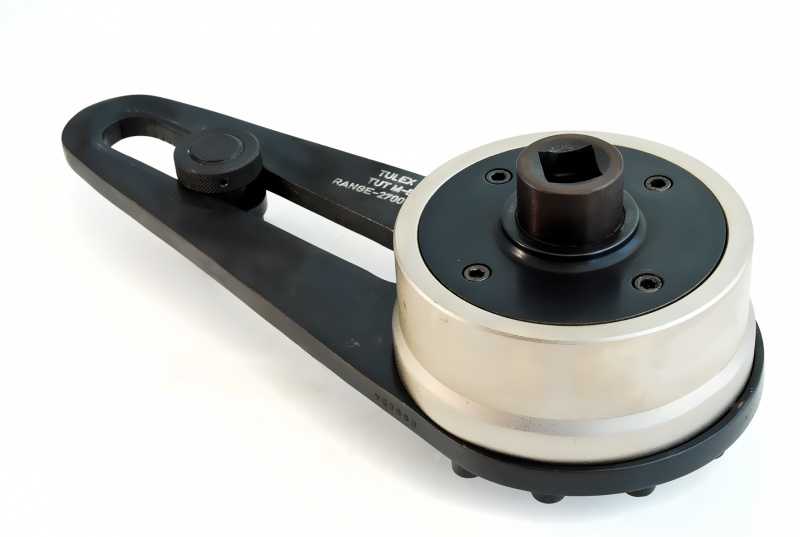

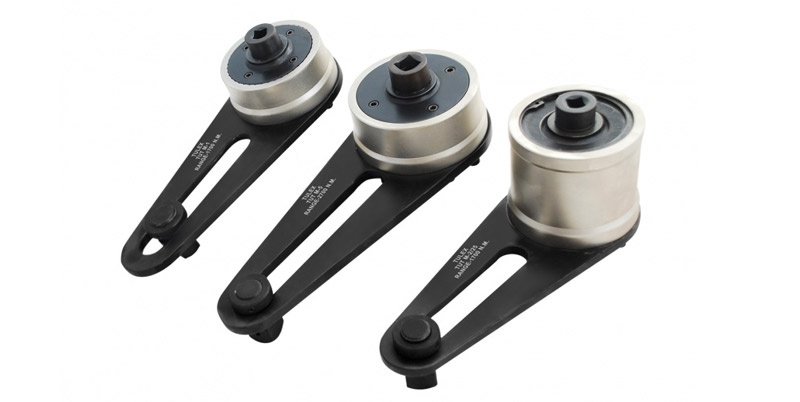

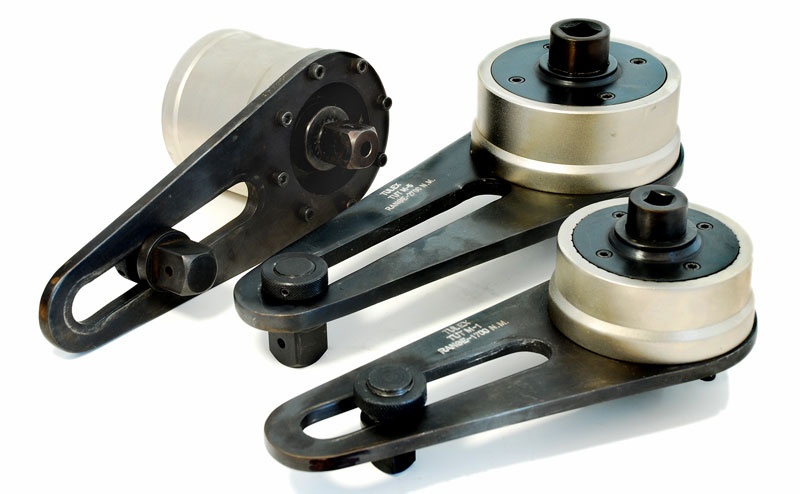

Tulex torque multiplier is a heavy-duty tool used to increase the torque produced by torque wrenches. They have been developed and designed to meet high torque requirements keeping in view space restrictions in torque wrench applications. Torque multipliers are suggested for either tightening of high tensile bolts or loosening rusty & frozen nut bolts.
Tulex torque multipliers are machined to high precision. The gear units are designed for multiplication of input torque. multipliers are recommended to be used where very high torques (over 100 kg mtr. ) are required to minimise input effort. The use of torque multipliers reduces the manpower required as well as operator fatigues. The multiplier has a gear mechanism by which the torque applied on the input side is multiplied in a particular ratio. Tulex multipliers are available in multiplication factors of 5:1 & 25:1. Torque multiplier covers torque requirements from 170kg mtr to 965 kg mtr. (125 lb. Ft to 7000 lb. Ft)
Tulex torque wrenches are recommended to be used at the input end to achieve an exactly calculated output torque so the fluctuation of efficiency remains extremely small over a long period. It is extensively used in large petrochemicals and refineries.
