General Features of Zero Gap Flange Spreader SG13TE

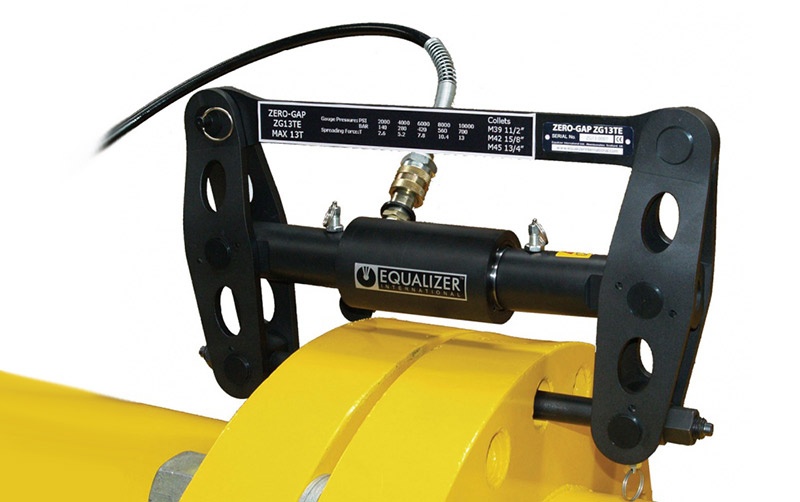

Equalizer International SG13TE 13 Ton Zero Gap Hydraulic Flange Spreader
Equalizer zero gap grip-holder mechanical flange spreader is clutch to connector bolt holes and spread flange joints. On this case there is no space on flange surface. This is why MG and SW series not using on zero gap flange types. (MG series requires 2 mm gap, SW series requires 6 mm gap.)
SG series are perfect for zero gap flange joints. SG13TE is do not damage to sealed surface of flange. Ideal for M39, M42 and M45 bolt connections
How does it work ?
Equalizer SG Series grip-holder flange spreaders is used at zero-gap flange joints. Equalizer zero gap grip-holder mechanical flange spreader is clutch to connector bolt holes and spread flange joints.
Three piece grips are expands and hold on to bolt hole. Grip-holder is fixed in the hole and spreading process is performed. Equalizer’s zero gap flange spreader (SG13TE) suitable for M39, M42 and M45 bolt connections. (38mm, 49mm diameter.)
Zero space flange connections are generally used in oil and gas subsea pipeline. Therefore, there should be no gaps in the flange joints.
In some connection types which exposed steam and water, there should be zero-gap flanges. In these cases, Equalizer International's zero gap flanges should be used. Flange surface is not damaged and the seal is maintained.
SG13TE Technical Data
