we are proud to supply our clients with a great selection of power team roller bearing pulling/installer models. Power Team are leading name in power equipment and are the best choice if you want a quality roller bearing puller/installer that can deliver a substantial pulling force, which makes for fast and efficient removal or installation of roller bearings. As well as this, our supplied models are both convenient and versatile thanks to their excellent portability. So browse our selection of Power Team roller bearing puller/installers today, and find the right model to suit your needs.
|Order No||Model Type||Cylinder Type||Valve Type||H.P||Pump Information Phase||Voltage|

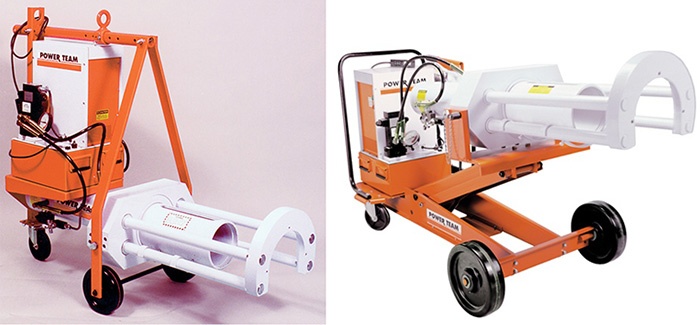

Power Team now has four models to choose for greater flexibility. With both sling and jack models available and two pumps to choose from, you can tailor the unit to match your needs. With the proper equipment and know-how, removal and installation of axle journal roller bearings takes an absolute minimum of time and effort.
Each unit will service a full line of bearings with rotating end caps, from class B thru GG. No other method can match Power Team's simplicity. Removal is very easy. Simply remove the end caps, slip the pulling shoe between the bearings and the wheel, actuate the pump, and in seconds, 100 tons of pulling force removes the bearing. Installation is just as easy! Each unit is CSA certified (LR19814) and comes complete with a heavy-duty 100-ton hydraulic cylinder, 10,000 P.S.I. (700 bar) pump with remote control solenoid valve, hydraulic pressure gauge (No. 11543), a pulling shoe and installing tube.
|Order Code||Stroke (mm)||Pull (Tons)||Inst. (Tons)||Advance (mm/min.)||Speed Pull (mm/min.)||Inst. (mm/min.)||A (mm)||B (mm)||C (mm)||D (mm)||E (mm)||F (mm)|
|Pulling Shoe Insert Adapter||No. 351830||No. 30512||No. 30521||No. 30520|
|Guide Tube & Cap Screw Assembly||No. 253341||No. 253342||No. 253343||No. 253344|
|Cap Screw**||No. 253339||No. 253394||No. 253339||No. 253395|
|Guide Tube Adapter||No. 21247||No. 21247||No. 21247||No. 21247|
|Installing Tube Adapter Ring||No. 253335||No. 253336||No. 253337||No. 253338|
|Tool Description||Class B 108 x 203 (No.)||Class C 127 x 229 (No.)||Class D 140 x 254 (No.)||Class E 152 x 279 (No.)||Class EE 140 Axle. (No.)||Class EE 152 Axle. (No.)||Class F 165 x 305 (No.)||Class G 178 x 305 (No.)||Class G 165 Axle. (No.)||Class GG 165 Axle. (No.)|
|Pulling Shoe||No. 420845 is included as part of basic machine – Do Not Order||420846||420846||420846|
|Pulling Shoe Insert Adapter||30522||30512||30521||30520||30520||30519||30519||—||—||—|
|Guide Tube & Cap Screw Assembly||253313||253314||253317||253318||253316||253327||253320||253321||253319||253323|
|Installing Tube||No. 420845 is included as part of basic machine – Do Not Order||30417||30417||30417|
|Installing Tube Adapter Ring||21242||21258||21256-1||21255-1||21255-1||21257-1||21257-1||30586||30585||30585|
