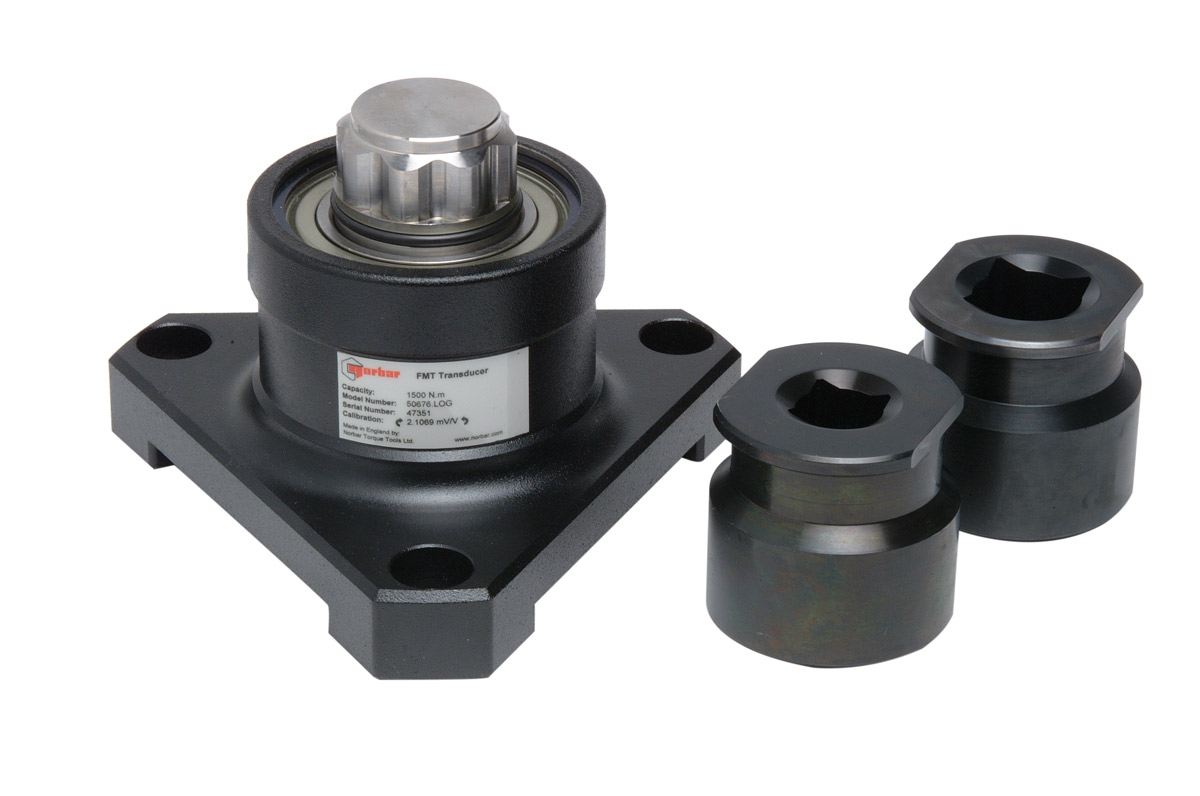

Flange Mounted Transducers incorporate mounting points for securely fixing the transducer to the working surface. The transducer lead is also included and is fitted with a high quality Lemo® connector, suitable for attachment to TST and TTT instruments.
S.I Calibrated Transducers
|Capacity (Nm)||Part No.||Range (Nm)||Square Drives (inch)|
|2||50671.xxx||0.04 - 2||¼|
|25||50673.xxx||1.25 - 25||¼ + ⅜|
|150||50674.xxx||7.5 - 150||⅜ + ½|
|400||50675.xxx||20 - 400||½ + ¾|
|1500||50676.xxx||30 - 1500||½ + ¾ + 1|
Select par t no. suff ix .LOG if the transducer is to be connected to TST or TTT (example: 50671.LOG). For connection to a non Norbar instrument or when a mV/V certificate is required, select .IND.

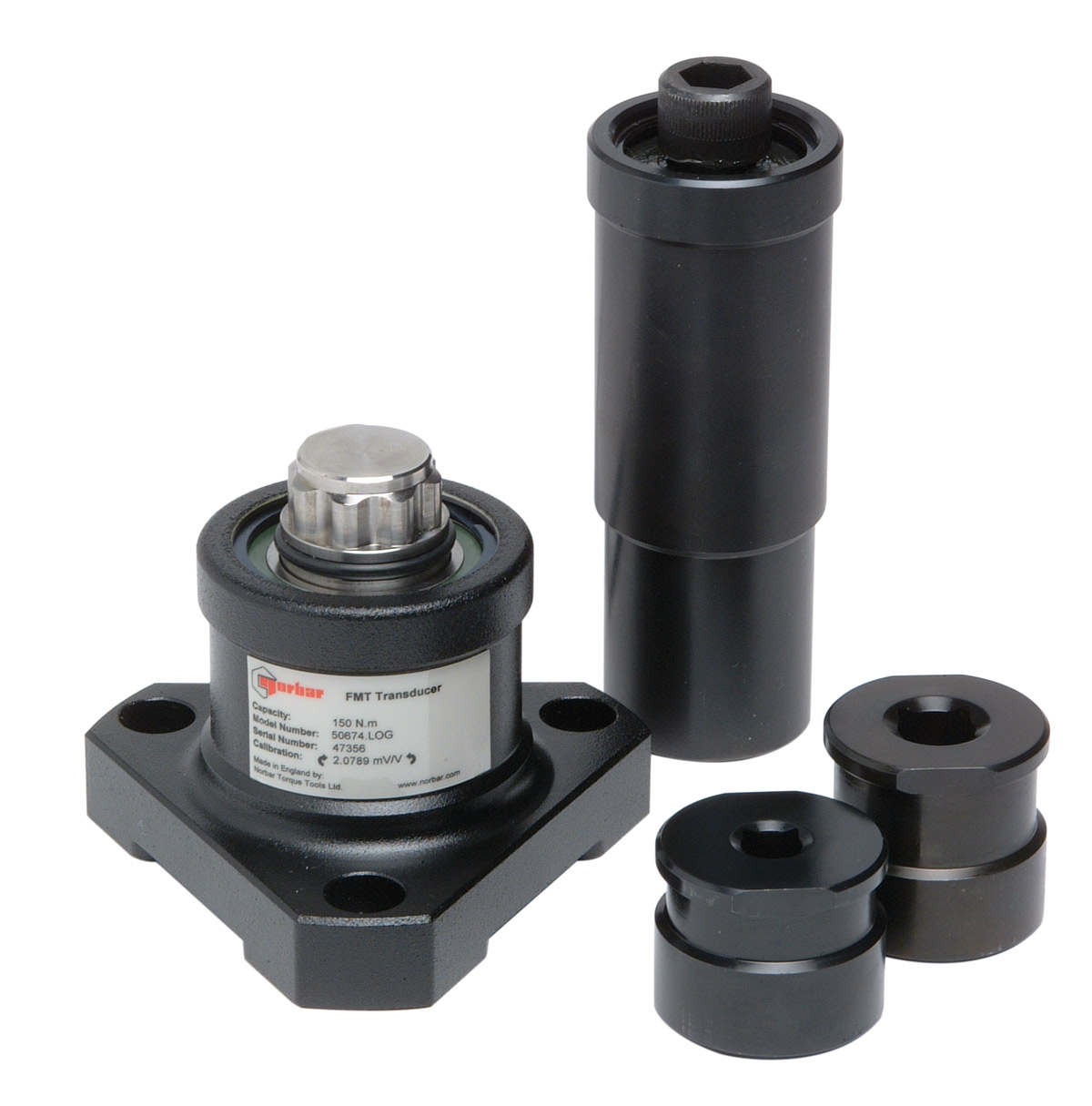

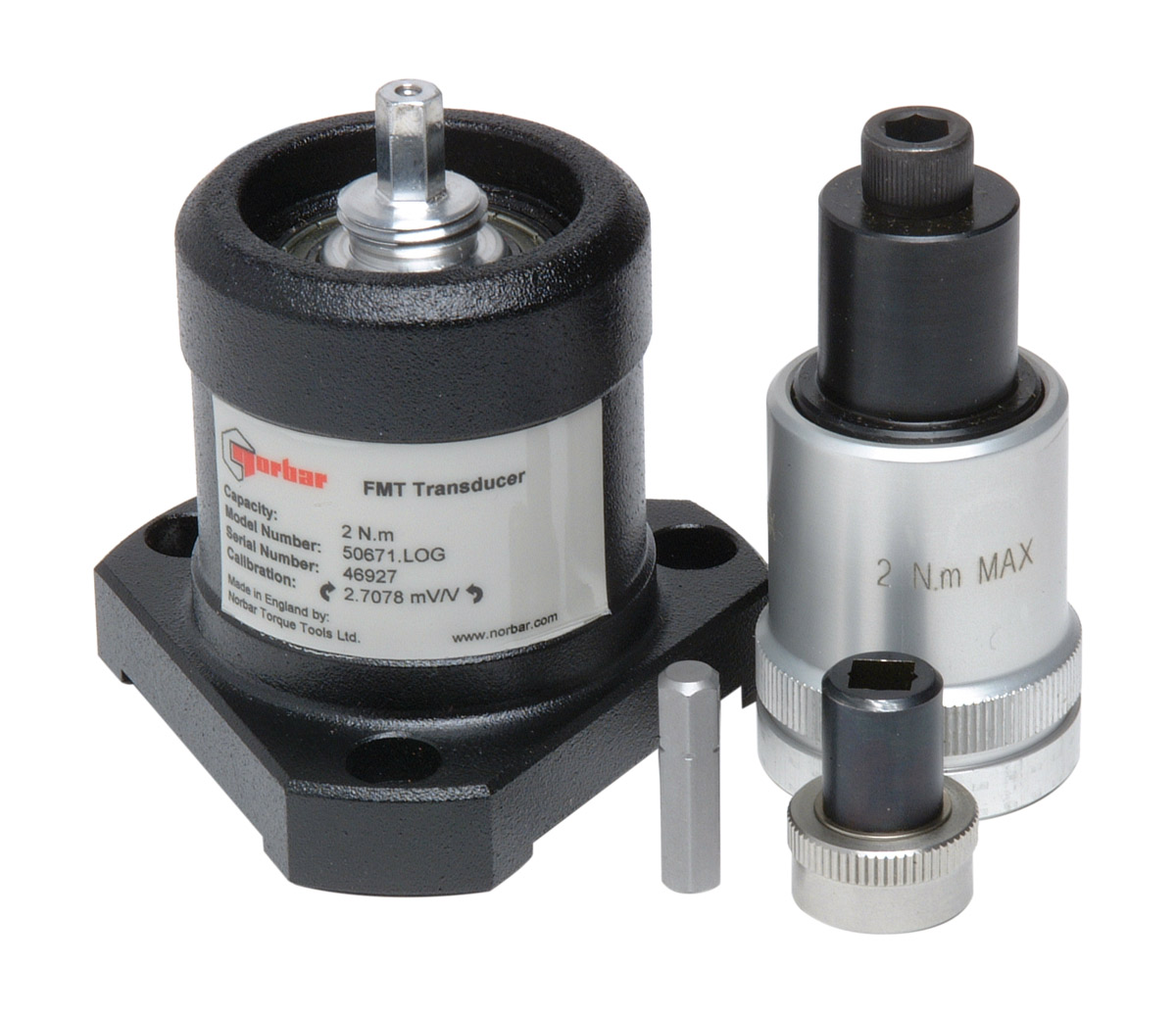

Joint Simulation Rundown Assemblies for Flange Mounted Transducers
|Part No.||Range (Nm)||A/F Size of Hex Screws|
|50539||0.04 - 2||¼|
|50540||0.5 - 10||¼|
|50541||1.25 - 25||¼|
|50692||7.5 - 150||14 mm|
The above Joint Simulation Rundown Assemblies are supplied with the Flange Mounted Transducer as standard, but can also be ordered separately.
